Product introduction

Lightning counter can detect, record SPD discharge time and match other SPD and auxiliary products

Features

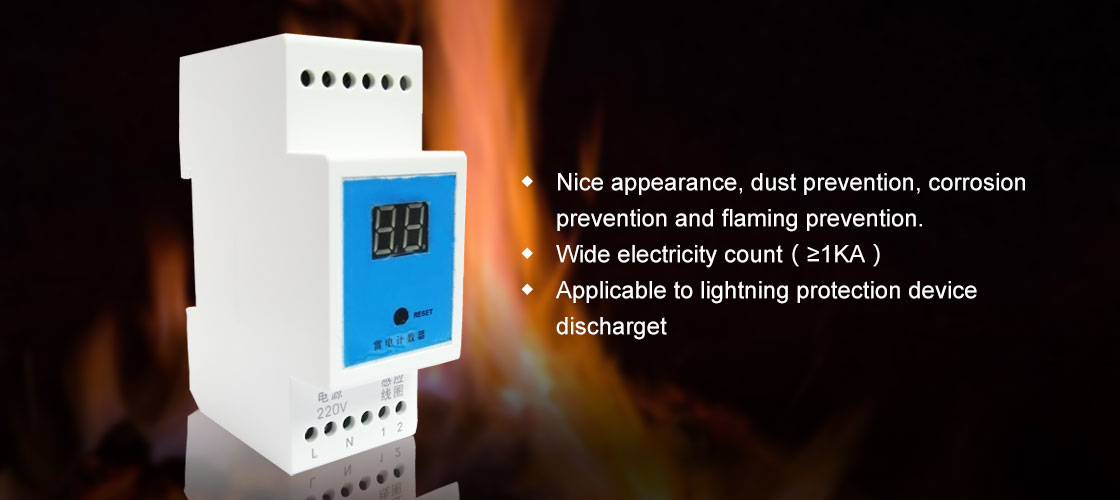

◆ Nice appearance, dust prevention, corrosion prevention and flaming prevention.

◆ Wide electricity count（≥1KA）

◆ Applicable to lightning protection device discharge

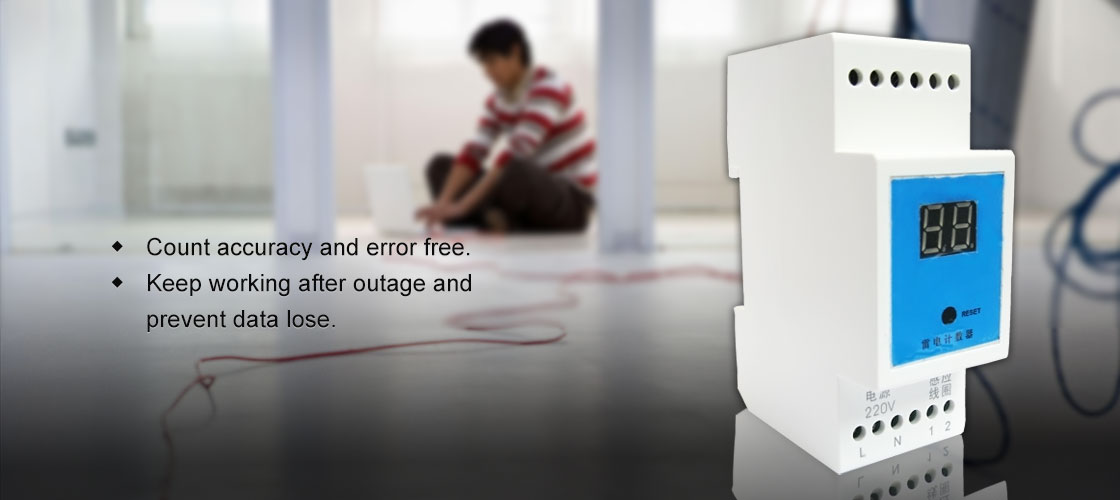

◆ Count accuracy and error free.

◆ Keep working after outage and prevent data lose.

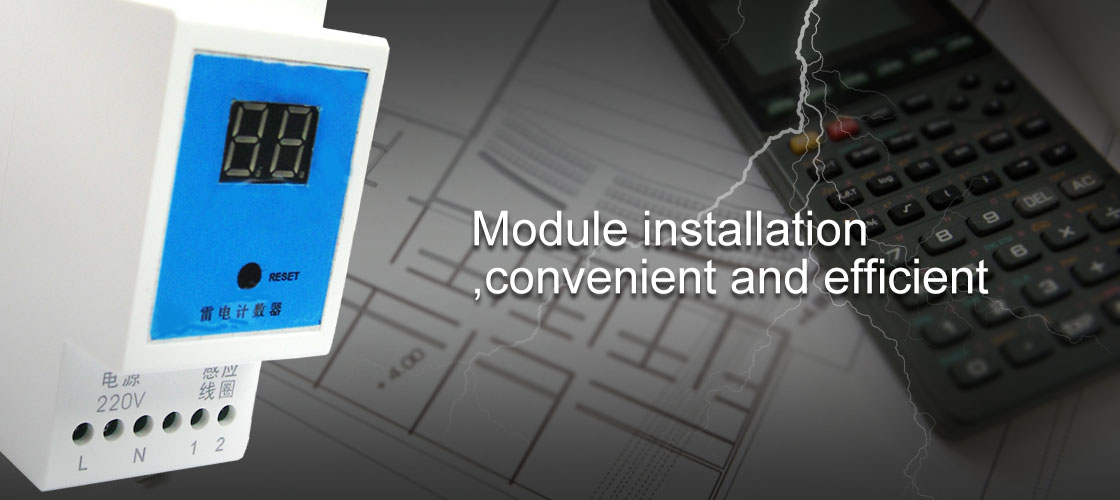

◆ Module installation ,convenient and efficient

Technical Parameter

Product Model	LK-JS-35
Operating Voltage	12V
Action Voltage	≥1KA
Count Time	0～99
Data Collection	response and mutual inductance
Housing	flaming prevention PC（white）
Operating Temperature	-40℃～+70℃
Executive Standard	En50022
Mounting Bracket	35mm wide standard electrical installation guide rail

Model

LK-JS-35

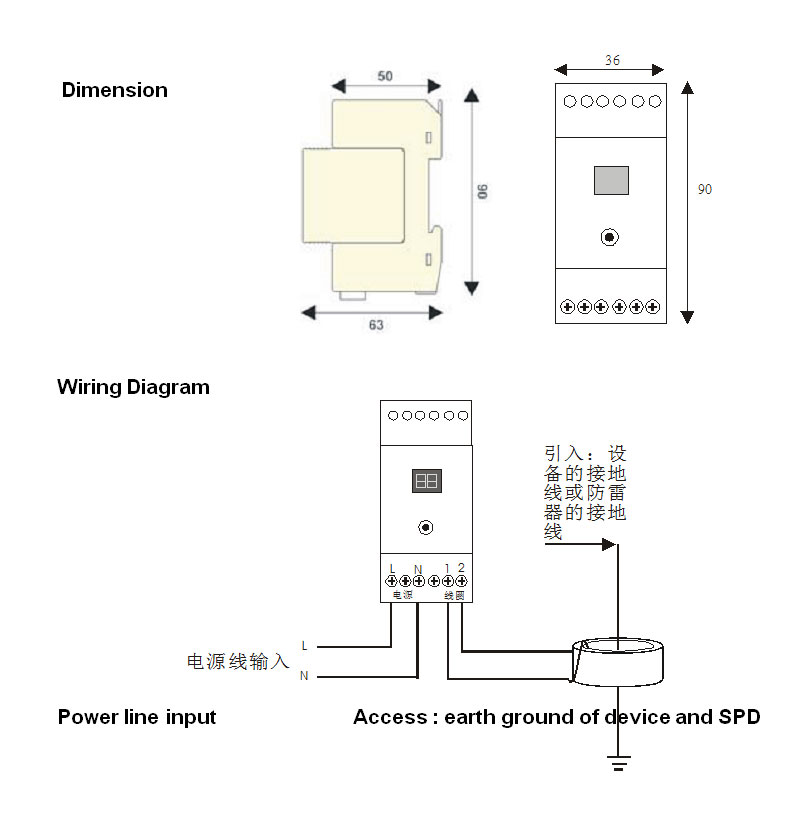

Installation and usage

◆ Port 1 and 2 should connect matched induction coil which need access to ground wire ；

◆ Port L and N connect AC230V（working power supply of lightening ）or surge protection output

◆ Is suitable for indoor running such as install waterproof measures ；

◆ All wiring should be firm and reliable electric linkage.
